I. Project Overview

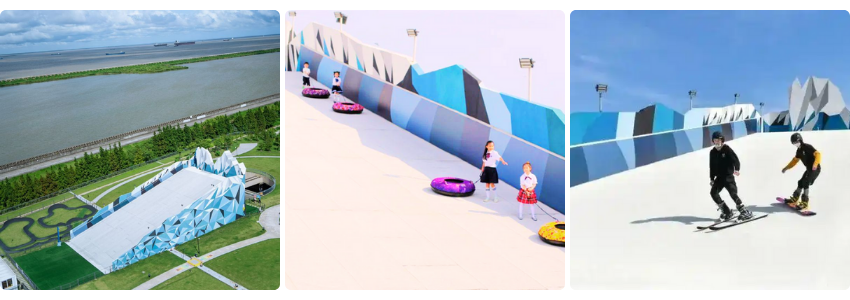

The site is located within the Shanghai Sanjiagang Greenland International Tourism Resort—a premier coastal destination in Shanghai with direct views of the East China Sea. The resort recently launched "Shakaland" in May 2025, featuring a 2,500 sqm indoor family playground and a 10,000 sqm outdoor sports park. Since its opening, it has quickly become a hotspot for family outings, parent-child activities, and corporate events in Shanghai.

II. Experience Highlights

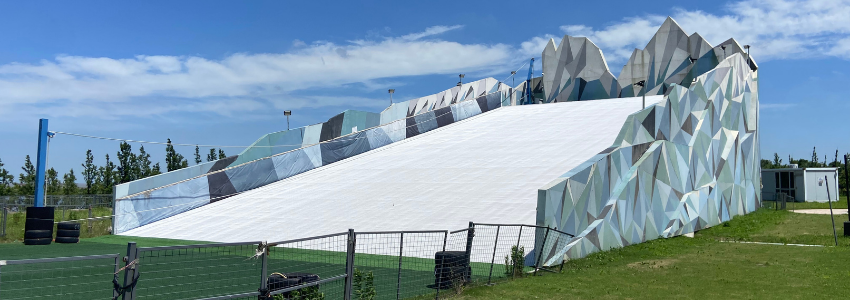

The park boasts an extended dry-snow slope designed with specialized lubrication to deliver an authentic snow-like experience. Ski enthusiasts can satisfy their cravings here, while younger visitors can enjoy sliding down the "snow track" in inflatable "donuts" with their parents.

Another standout feature is the "Iceberg"—an 8-meter-wide, 9-meter-high climbing wall equipped with an automated safety descent system, allowing children to challenge themselves in a secure environment.

Dry Snow Slope + Climbing Wall Combo:

- Summit views overlooking the East China Sea

- Nighttime sliding with dynamic speed-sensitive LED lighting (color changes with velocity)

III. Design Specifications

Four-Season Dry Snow Slope Dimensions:

1. Zoning:

   - Launch platform: 3m (length)

   - Slope: 37m (length)

   - Buffer zone: 20m

2. Slope Gradient:

   - Initial segment: 18° (8m length) for rapid acceleration

   - Subsequent segments: 15° (8m) → 12° (10m) → 8° (11m)

   - Average gradient: 12.81°

3. Slide Width:

   - Total width: 20m (including 1.5m sidewalks and edge buffers per side)

   - Effective sliding width: 17m (accommodates 5 users simultaneously)

4. Structure:

   - Total height: 8.4m

   - Railing height: 1.2m (steel frame construction)
